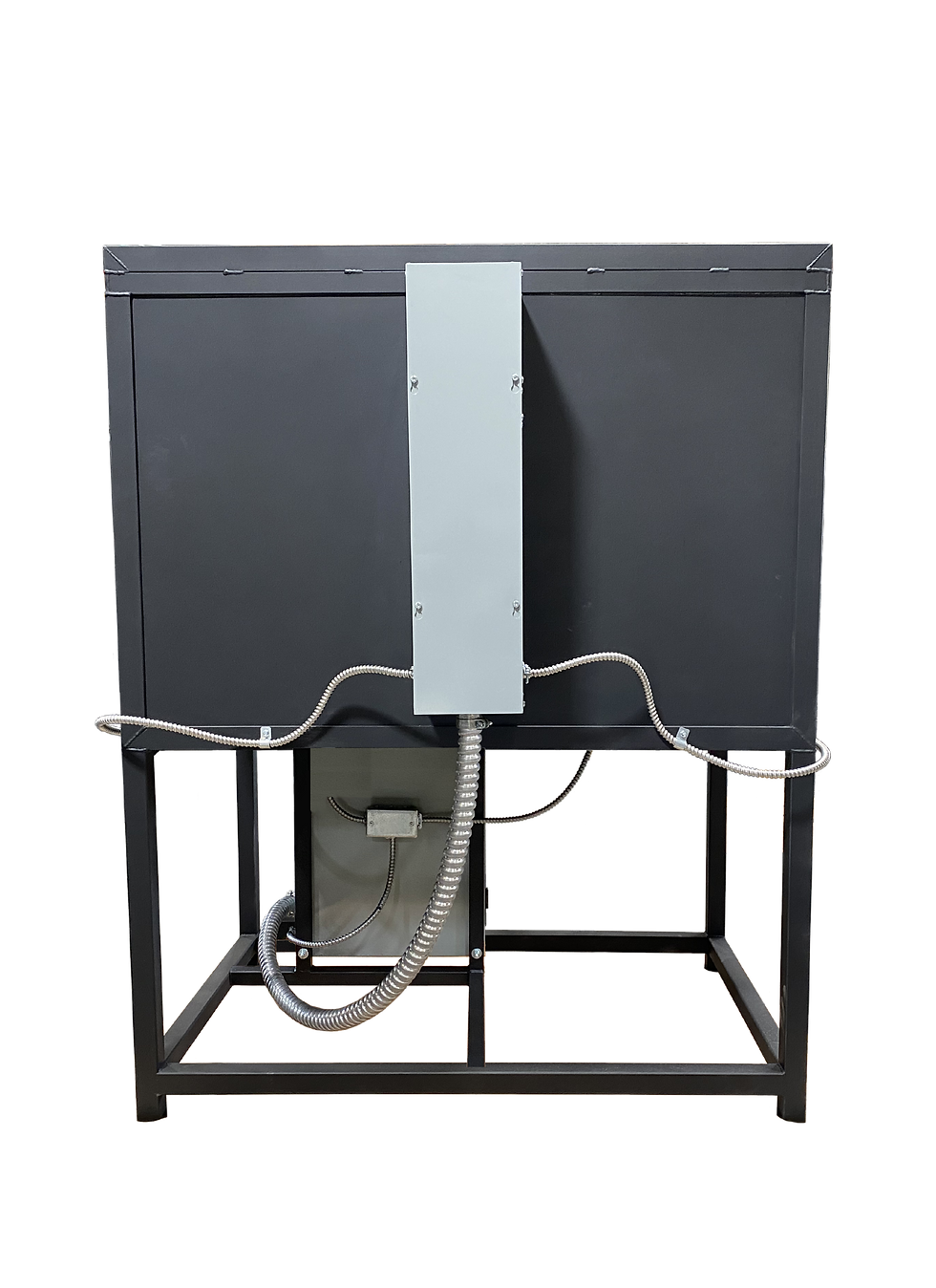

Annealing Oven 36 - White Board

Add $600 for the 3-phase Annealer

Internal Oven Dimensions:  TBA

External Dimensions:  TBA

Included: elements and power control package.

Doors: 2 easy-to-operate, front-loading doors. Built for one-handed opening.

White Board: 2300f insulating white board rigidized and durable. The white board.

Board to Board Seal: Using he white board utalizes a 2" flat face to flat face heat seal that keeps all the heat from escaping.

Heat Seal: High temp gasket seal for efficient temperature control.

Leveling Mounts: On leveling bolts (durable caster wheels option available).

Safety: Safety power switches on each door turns off power when either door is opened. High temperature limit prevents overheating. Battery back-up in case of power loss.

Manual: Color photo instructional manual for installation and maintenance.

Support: Technical support is available for life of furnace. Contact us for any equipment-related question and we are happy to help you out over the phone.

Controller: Watlow EZ-Zone controller with over temperature limit and up to 40 linkable steps.

Current Controller: Watlow QSCR with internal fuse protection (Mercury relay option available).

Thermocouples: 2 type K thermocouples.

Indicator Lights: Door light, Power light.

3-phase: Add $750

Power Consumption: 10.5 kW

Warranty: All electronics come with manufacturer warranty and are fused for surge protection.
